It’s no secret that today’s consumers are becoming increasingly self-reliant. Instead of going to a barber and paying for a haircut, some people buy clippers and do the job themselves. Instead of heading to the store for fresh yogurt, they buy a yogurt maker and prepare it at home. Fortunately, major construction projects have traditionally remained the domain of professionals. Or have they? Mini tractors, mini loaders, and finally, those remarkable little machines known as mini-excavators are making it easier for people to tackle digging jobs themselves. Let’s take a closer look at 10 compact excavators, from tiny machines designed for confined spaces to more capable models for demanding work.
1 Komatsu PC01-1 mini excavator – 380 kg
The Komatsu PC01-1 is so small that it almost looks like a toy. This compact tracked machine weighs approximately 380 kg and is designed for light excavation work in extremely confined spaces. Depending on the configuration, its maximum digging depth is around 1 meter. Its tiny footprint makes it useful for landscaping, gardening, and small construction projects where a conventional excavator would be too large. However, specifications such as digging depth, lifting capacity, and operating weight can vary by version, so the original figures should be checked against the machine’s technical documentation.

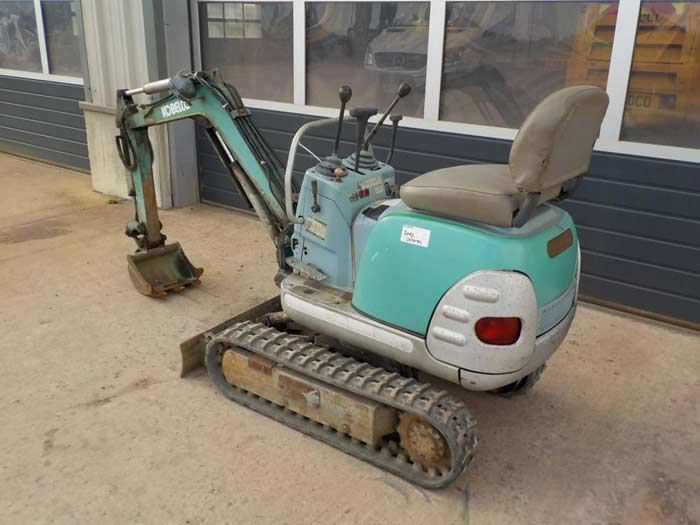

2 Kobelco SK005 mini excavator – approximately 500 kg
The Kobelco SK005 belongs to the ultra-compact excavator category, designed for work in places where space is extremely limited. Historical specifications for this model vary, and the original claim of a 4-horsepower engine and a digging depth of 1.35 meters should not be treated as universally verified. As with other machines in this weight class, its small bucket is intended for light excavation rather than moving large volumes of soil. Its main advantage is accessibility: it can work in narrow gardens, small yards, and other areas where larger equipment cannot easily operate.
3 Bobcat 316 mini excavator – approximately 820 kg
The Bobcat 316 is a compact excavator designed for small-scale digging and landscaping. Compared with the tiniest machines, an excavator in this class offers greater stability and a more capable working range. Compact excavators can also feature adjustable undercarriages, allowing the tracks to retract for passage through narrow openings and extend for improved stability during operation. However, the original figures for the Bobcat 316’s weight, bucket capacity, and track width should be verified against the specific model documentation before being used as definitive specifications.

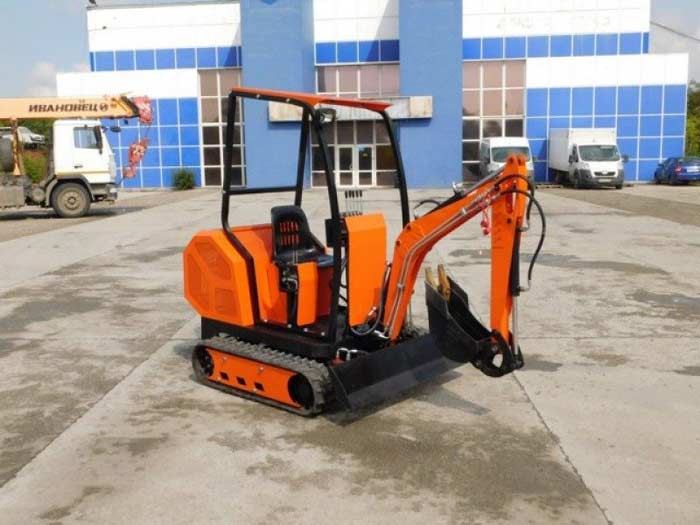

4 STRONG MS 2000 mini excavator – approximately 850 kg
The STRONG MS 2000 was presented as a compact excavator for small digging projects. The original specifications list an operating weight of approximately 850 kg and a maximum digging depth of 2 meters. These figures should be regarded as historical claims rather than independently verified current specifications, as reliable manufacturer documentation is difficult to establish. Nevertheless, the model illustrates the appeal of compact excavation equipment: a relatively small machine can perform useful digging work in locations where transporting and operating a full-size excavator would be impractical.
5 Cat 300.9D mini excavator – 935 kg
The Caterpillar Cat 300.9D is a genuine compact hydraulic excavator designed to work in tight spaces. Its operating weight is approximately 935 kg without the optional safety frame, and its maximum digging depth is about 1.73 meters. The machine is narrow enough to pass through many restricted entrances, making it useful for indoor demolition, landscaping, and renovation projects. Caterpillar lists a gradeability of up to 30 degrees, although safe operation on slopes depends on ground conditions, machine configuration, and the manufacturer’s operating instructions. Its hydraulic system also allows it to use compatible attachments for a wider range of jobs.

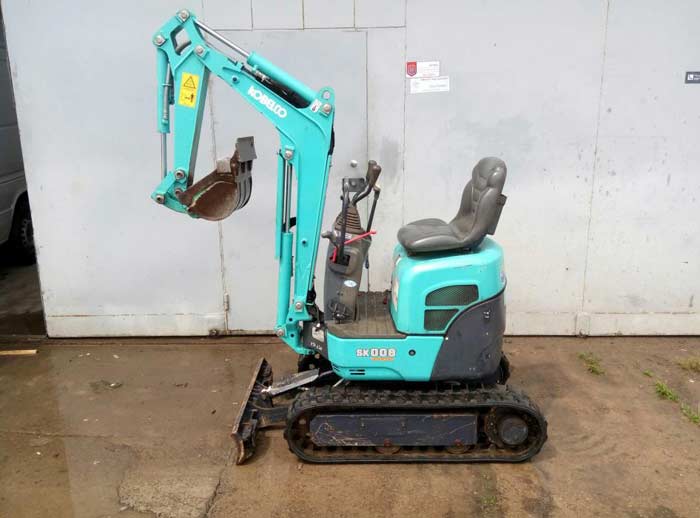

6 Kobelco SK008 mini excavator – 1,035 kg
If the smaller SK005 does not offer enough capability, the Kobelco SK008 is a step up. This compact tracked excavator weighs approximately 1,035 kg and is designed to operate in confined residential and construction sites. Its undercarriage can retract to a width of around 68 cm, allowing it to pass through narrow access points. Depending on the version and configuration, its maximum digging depth is approximately 1.5 meters. Despite its compact dimensions, the SK008 is a proper hydraulic excavator with considerably more capability than its toy-like appearance might suggest.

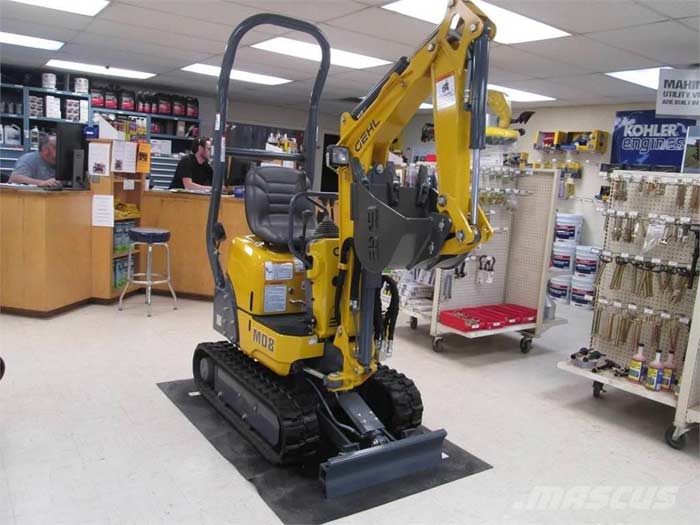

7 Gehl M08 mini excavator – approximately 1,065 kg
The Gehl M08 belongs to the class of compact hydraulic excavators designed for practical construction work. The original listing gives an operating weight of approximately 1,065 kg and a digging depth of around 1.5 meters, although these specifications require confirmation for the exact model version. Machines of this size can handle landscaping, trenching, foundation preparation, and other small excavation jobs. Their hydraulic systems also make it possible to use compatible attachments, extending their usefulness beyond digging alone.

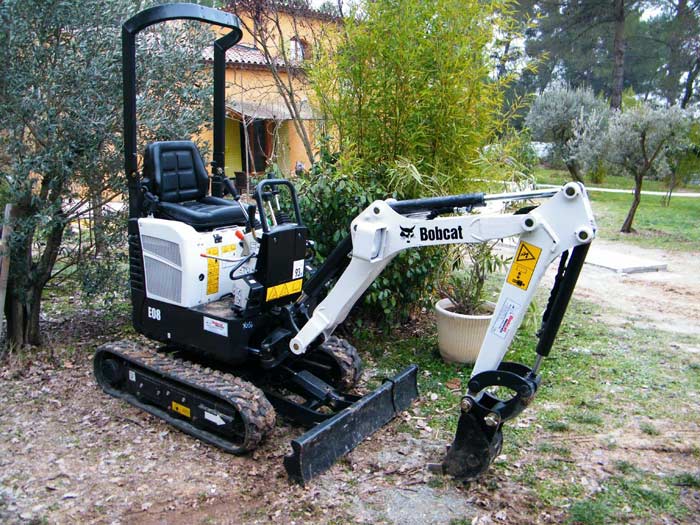

8 Bobcat E08 and E10 mini excavators – approximately 1,138 kg
The Bobcat E08 and E10 are designed for construction companies and contractors working in confined spaces. The E08 has an operating weight of approximately 1,138 kg and a maximum digging depth of about 1.82 meters. The original E10 is another ultra-compact model, while newer versions include the E10z and the electric E10e. These machines can dig trenches, prepare landscaping areas, and operate compatible hydraulic attachments. Their retractable undercarriages make it easier to pass through narrow entrances and work close to walls. As always, the available attachments depend on the model and hydraulic configuration.
9 Takeuchi TB210R micro excavator – approximately 1,210 kg
The Takeuchi TB210R is a compact Japanese excavator designed for work in restricted spaces. Depending on the specification and how operating weight is measured, its weight is approximately 1.15–1.21 tonnes. Its maximum digging depth is around 1.76 meters, and its travel speed can reach approximately 3.7 km/h. The undercarriage can adjust from roughly 750 mm to 1,020 mm wide, allowing the machine to pass through narrow access points and then widen for improved stability. It is a practical option for landscaping, renovation, and small construction projects.

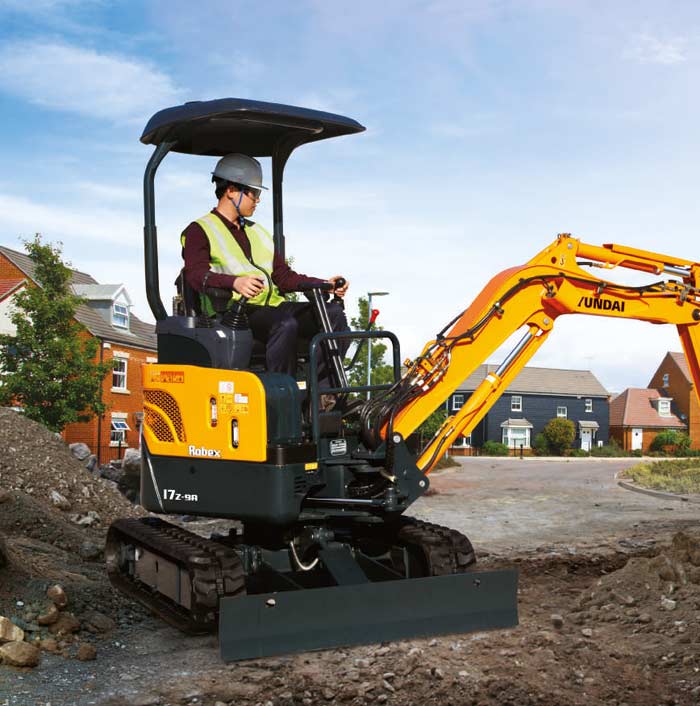

10 Hyundai R17-9 mini excavator – approximately 1,700 kg
The Hyundai R17-9 is considerably heavier than the smallest machines on this list, weighing approximately 1.7 tonnes. The original listing gives a maximum travel speed of 4.1 km/h and a digging depth of around 2.35 meters, but exact figures depend on the model and configuration. Its greater operating weight provides a more substantial working platform for excavation, trenching, and landscaping. At this size, it is best described as a mini excavator rather than a micro excavator. Ultimately, the terminology matters less than choosing a machine with the right digging capacity, dimensions, and attachments for the job.
